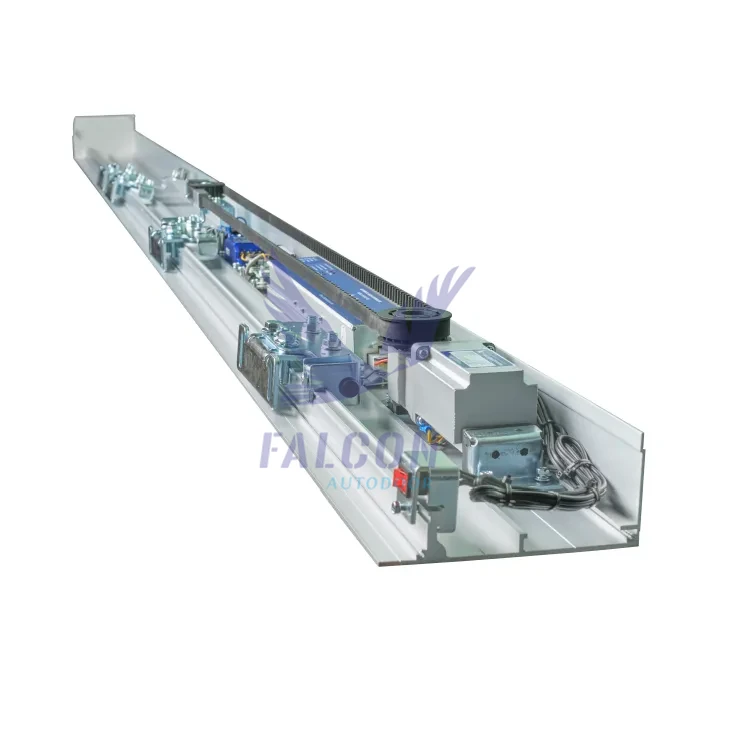

FALCON NEW DC 90
– Falcon model: New DC – 90 operator is Micom – Control process way, so it can be easily
adjusted speed control, interval setting, safety sensor setting.
– Operator can be quiet & exactly moved by high efficiency DC motor.
– More simple & convenient design for a built-in transformer and safety beam receiver in the
controller.
– More soft & strong by installing new motor reducer technologies.
– Motor developed with advanced technology don’t generate heat or noise even used for
long hours and operates in an optimal state.
– Controller functions are controlled digitally with a micro processor and various control
functions can be in put without difficulty for ease of use
Specifications:
|
Model Description
|
New DC-90S
(Single Door)
|
New DC-90D
(Double Door)
|
| Door Weight |
150Kgs X 1 |
120Kgs X 2 |
| Power Supply |
AC180V ~ 265V (50/60Hz) |
| Motor |
DC 24V 90W Gear Motor |
| Drive |
S8M Timing Belt |
| Opening Speed |
200mm ~850mm/sec (Adjustable) |
| Closing Speed |
150mm ~ 650mm/sec (Adjustable) |
| Hold Opening Time |
0~20 sec |
| Ambient temp |
-30°C ~ +50°C |
|
Rail Size
|
Single Leaf: 2m, 3m
Length:
Double Leaves: 4m, 5m, 6m
|
